Wet-cast wall copings and pillar caps

Products / Wet-cast wall copings

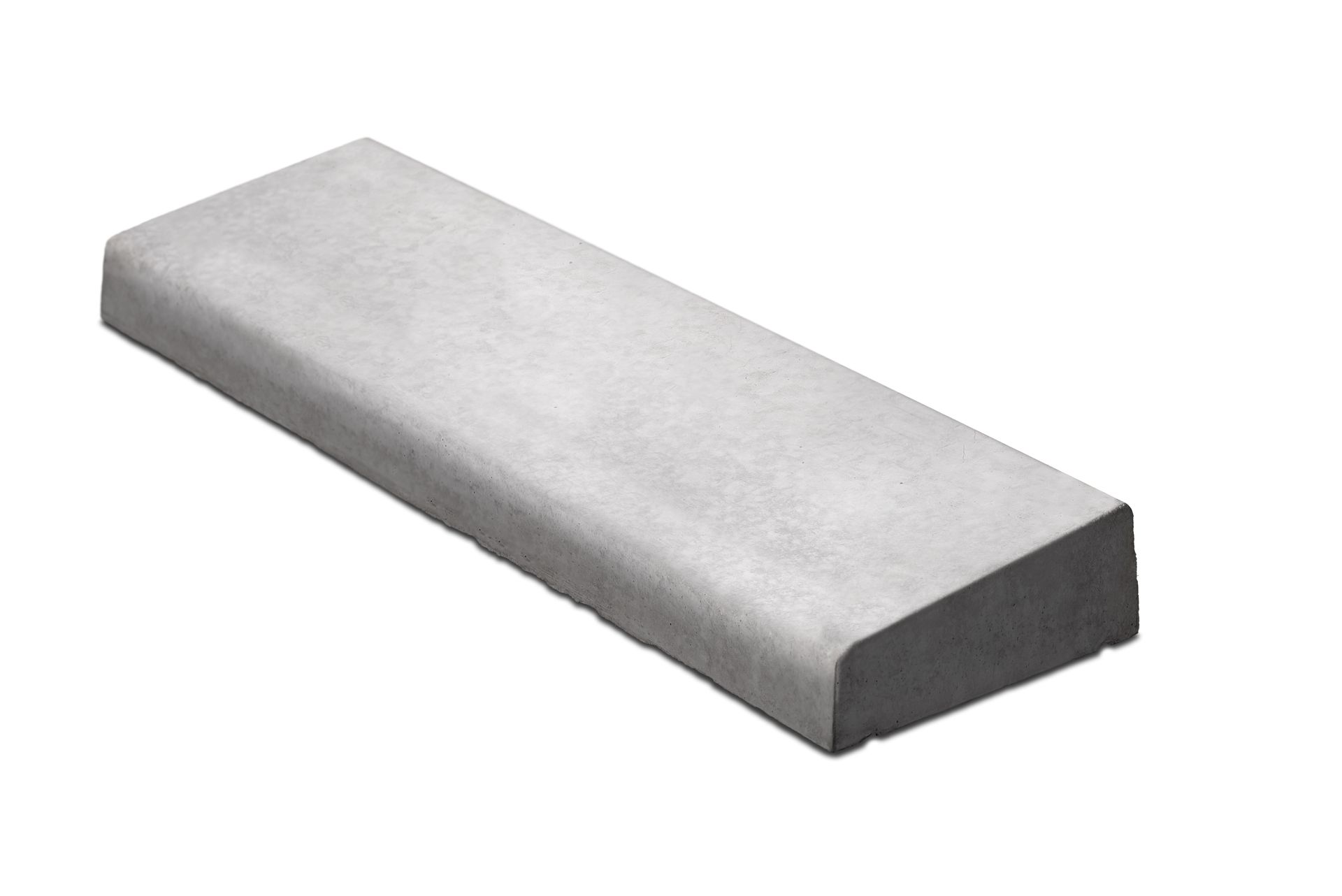

Once-weathered
Width thickness dimensions (a) approx weight no. per tonne no. per pallet
175mm (7in) 65 - 45mm 120mm 13 76 80
230mm (9in) 70 - 50mm 175mm 19 54 64
300mm (12in) 75 - 50mm 250mm 26* 38 50
350mm (14in) 75 - 50mm 295mm 30* 33 50
400mm (16in) 75 - 50mm 350mm 34* 29 30
450mm (18in) 75 - 50mm 400mm 38* 26 30
510mm (20in) 75 - 50mm 455mm 43* 23 30
610mm (24in) 75 - 50mm 555mm 53* 19 30

*In excess of 20kg – please use with caution after assessing the risks.

All copings are 600mm (24in) in length.

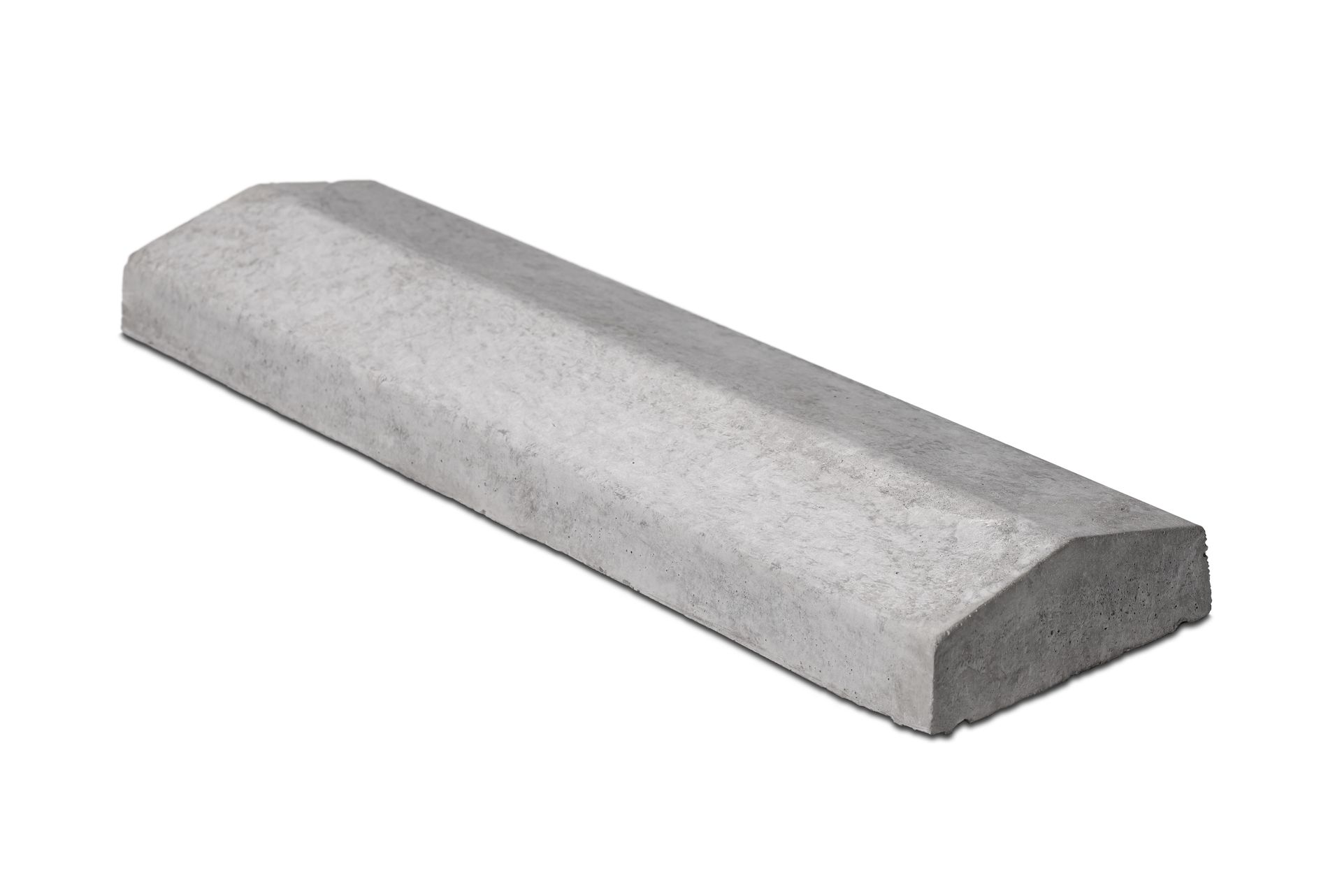

Twice-weathered
Width thickness dimensions (a) approx weight no. per tonne no. per pallet
140mm (5½in) 50 - 35mm‡ n/a 8 120 100
175mm (7in) 65 - 45mm 120mm 13 76 80
230mm (9in) 70 - 50mm 175mm 19 54 64
300mm (12in) 75 - 50mm 250mm 26* 38 50
350mm (14in) 75 - 50mm 295mm 30* 33 50
400mm (16in) 75 - 50mm 350mm 34* 29 30
450mm (18in) 75 - 50mm 400mm 38* 26 30
510mm (20in) 75 - 50mm 455mm 43* 23 30
610mm (24in) 75 - 50mm 555mm 53* 19 30

*In excess of 20kg – please use with caution after assessing the risks.

‡No drips

All copings are 600mm (24in) in length.

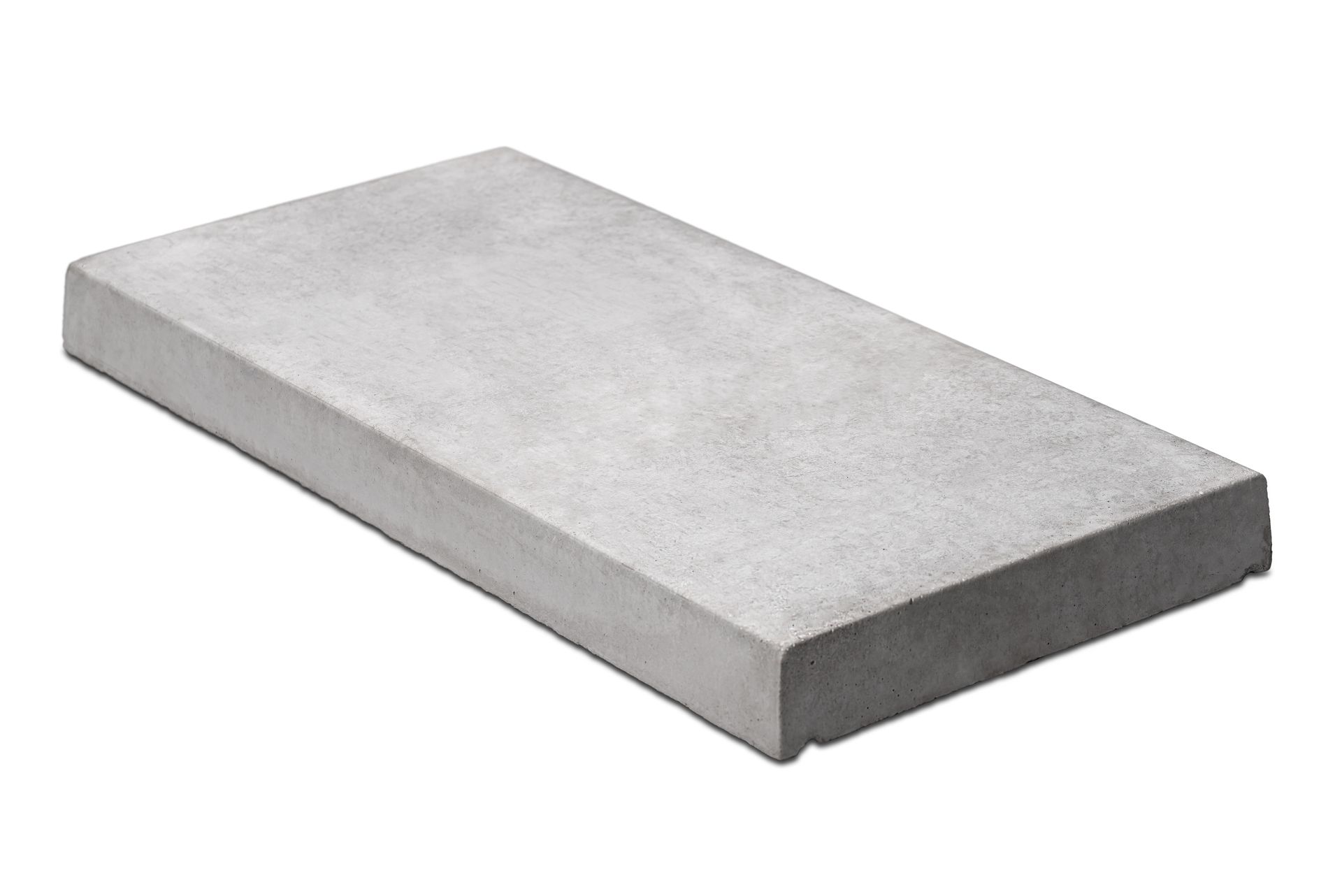

Tabling
Width thickness dimensions (a) approx weight no. per tonne no. per pallet
300mm (12in) 50mm 250mm 21* 48 50
350mm (14in) 50mm 295mm 24* 41 50

*In excess of 20kg – please use with caution after assessing the risks.

All copings are 600mm (24in) in length.

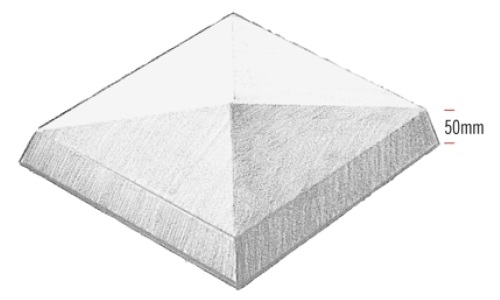

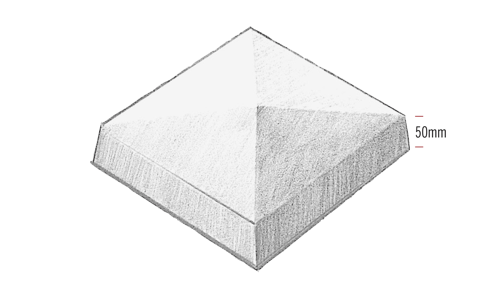

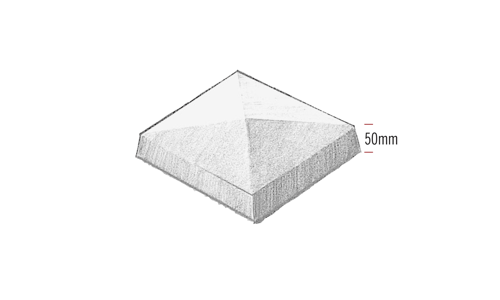

Wet-cast pyramid pillar caps

Pillar caps are supplied in four sizes which satisfy the vast majority of requirements.
  • PILLAR CAPS

    Write your caption here
    Button
  • PILLAR CAPS

    Write your caption here
    Button
Pillar caps approx weight no. per tonne no. per pallet
13 x 13in 15 67 36
17 x 17in 28* 36 18
21 x 21in 44* 23 12

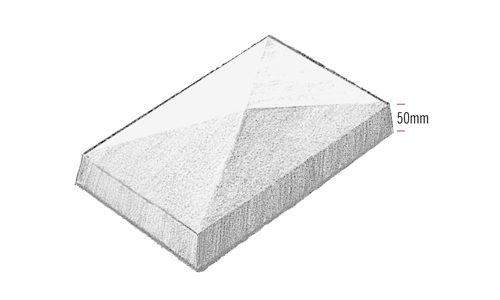

21 x 12in 22* 45 24
*In excess of 20kg – please use with caution after assessing the risks.
Download PDF data sheet
All products available ex works. Prices on application. Please contact the sales office for further information and a quotation. For information on packaging click here.
