Tactile and patterned
paving to BS EN 771-3

We produce a choice of tactile paving which is easily felt underfoot for pedestrian guidance.

The distinctive profiles indicate to the blind or partially-sighted the position of potential specific hazards on the footway or pavement.

SWIPE LEFT TO VIEW ENTIRE TABLE
Tactile sizes
mm
nominal
colour no.
per
tonne
no.
per
pack
grey red buff
Blister 450 x 450 x 50
42 40
Blister 400 x 400 x 65
40 30
Blister 400 x 400 x 50
54 40
Hazard 400 x 400 x 50
54 40
Directional 400 x 400 x 50
54 40
Cycleway 400 x 400 x 50
54 40
SWIPE LEFT TO VIEW ENTIRE TABLE
The table above shows the range of sizes and colours available.

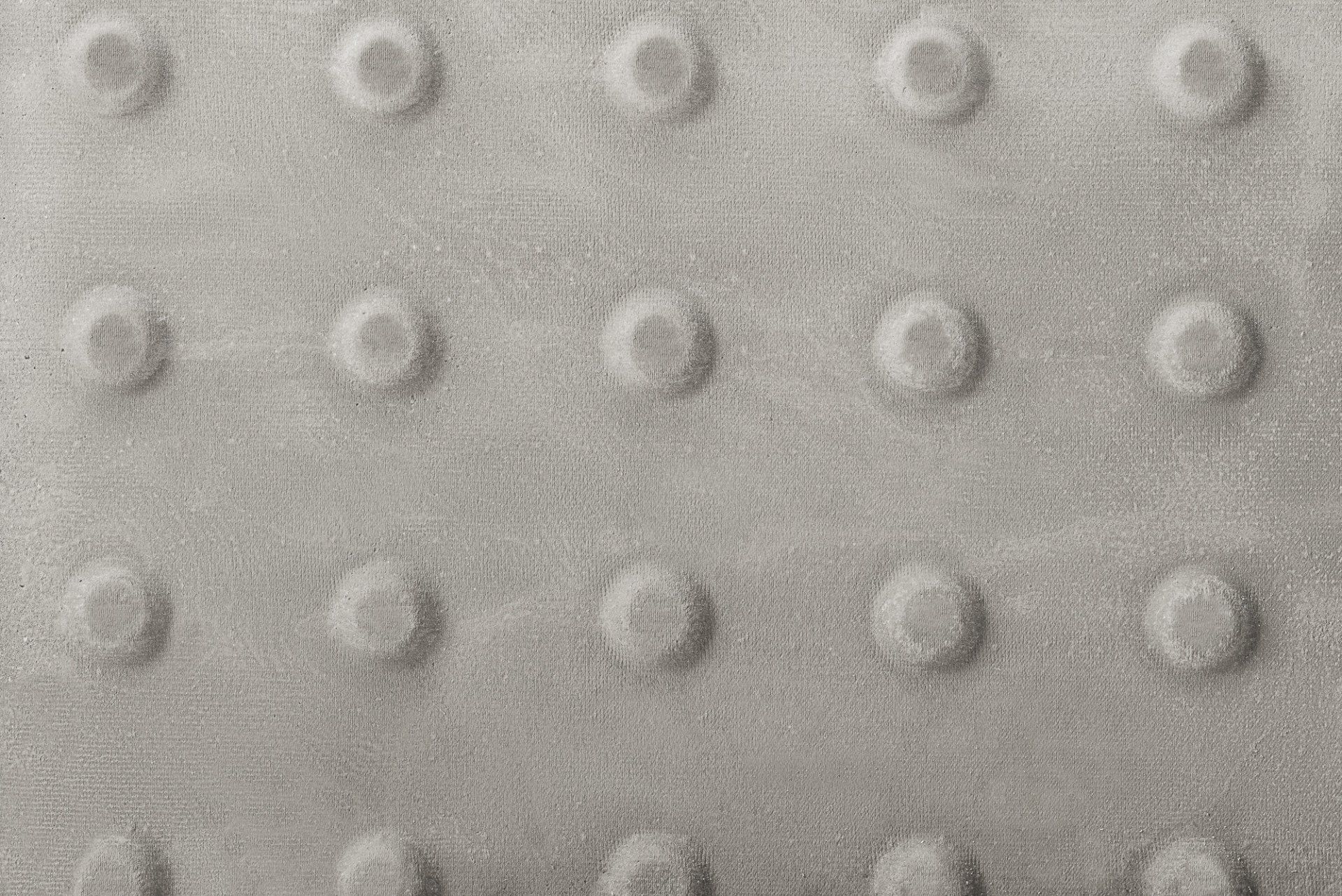

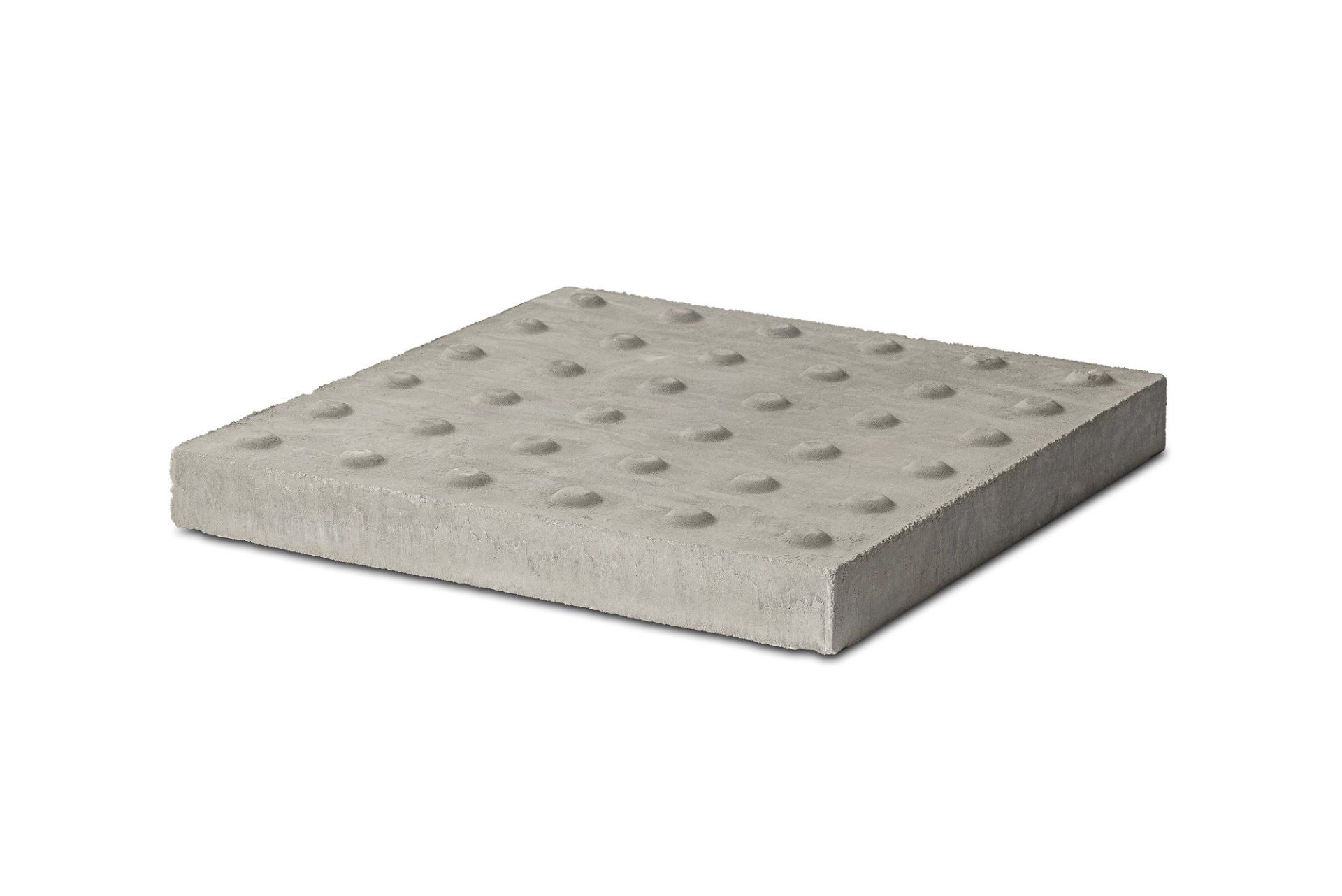

BLISTER PAVING

Used for identification of the presence of a dropped kerb at appropriate controlled and uncontrolled pedestrian road crossings.

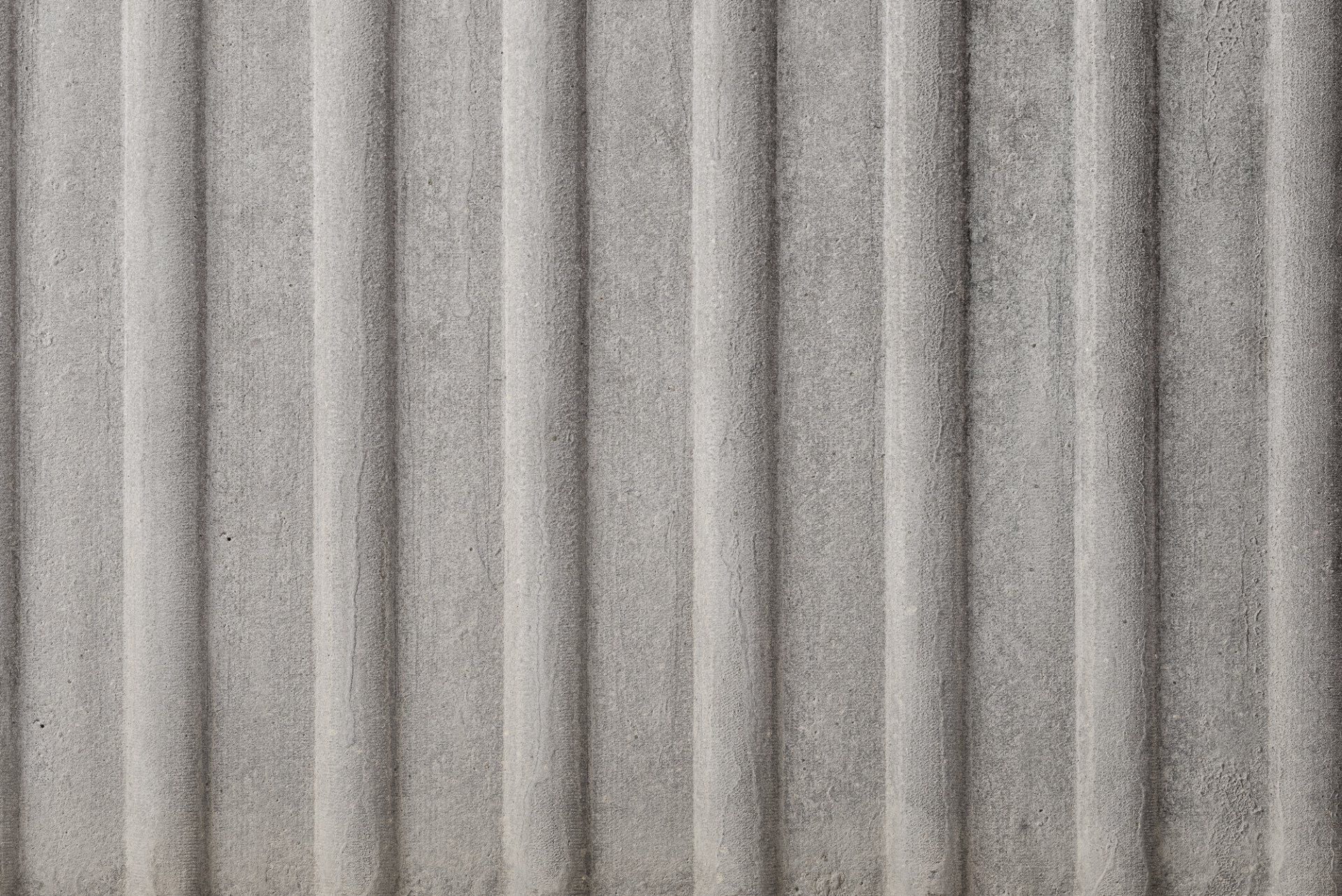

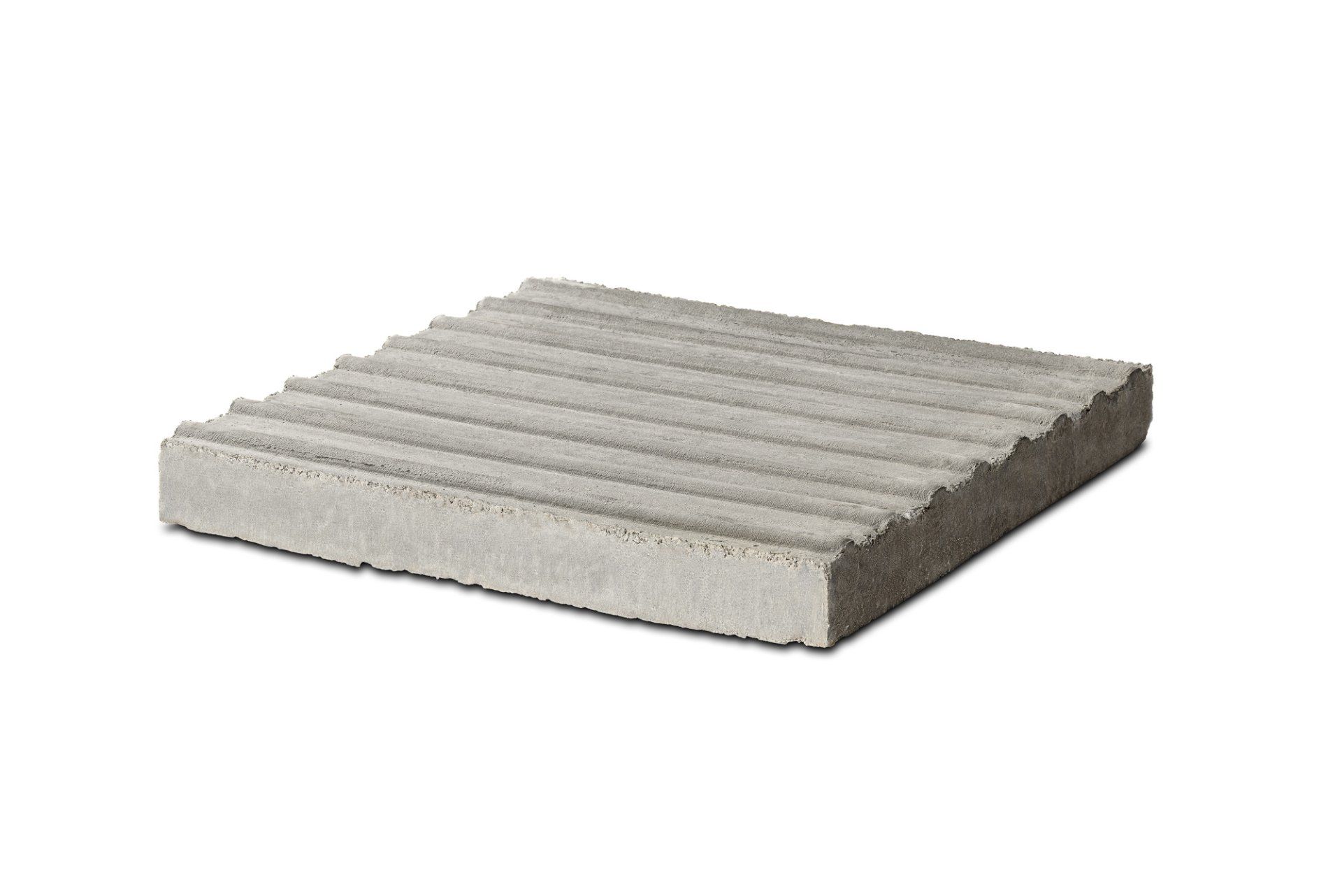

HAZARD WARNING PAVING

For use in pedestrian areas which require caution these half rod pattern pavings warn of such hazards as pedestrian/cyclepath crossings and flights of stairs.


DIRECTIONAL PAVING

In large open spaces such as shopping precincts these distinctive round end flat bars guide the visually impaired. The bars follow the line of travel or show a change of direction when laid at right angles.

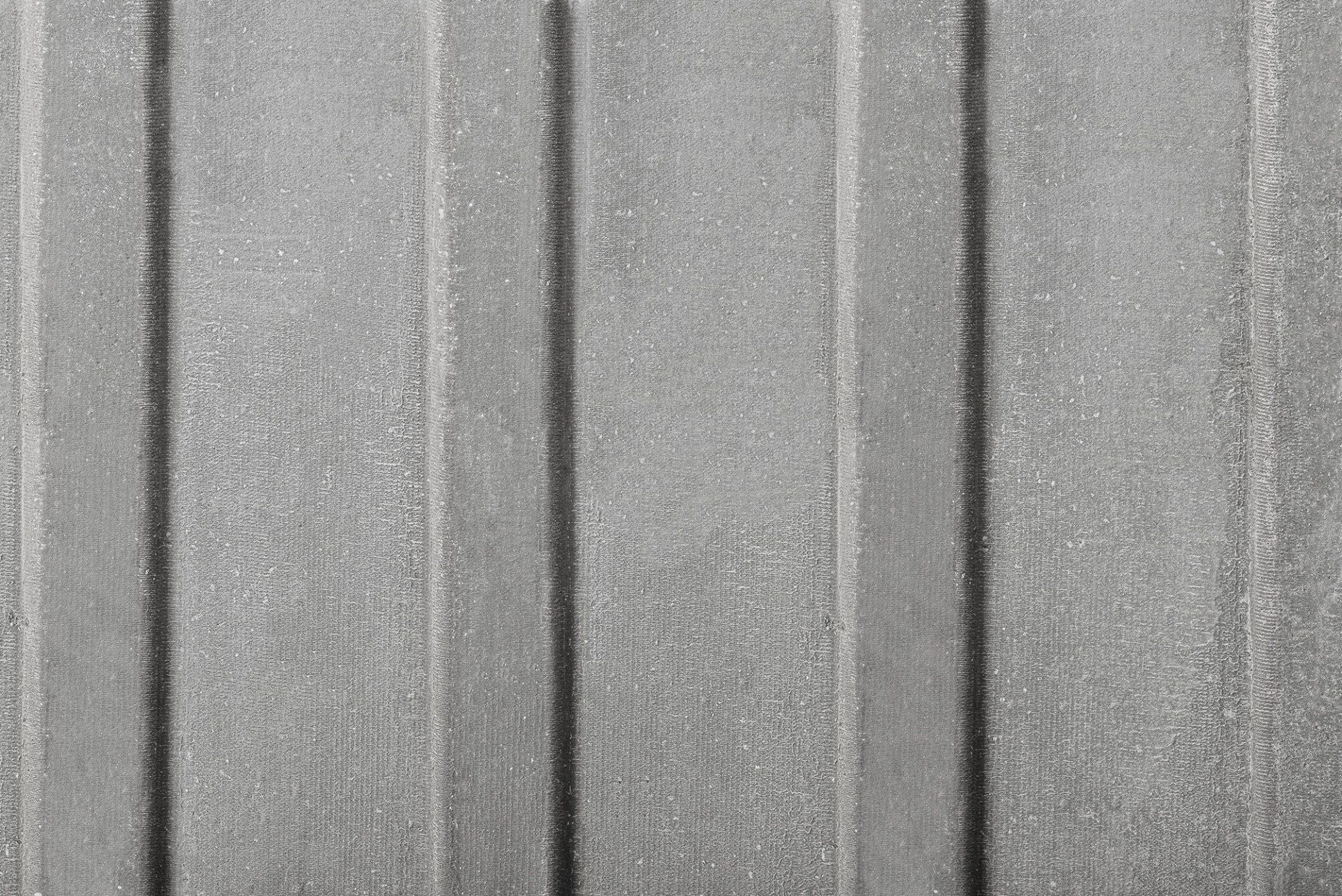

CYCLEWAY/FOOTPATH PAVING

Where pedestrians and cycles share the same route these segregate the two. They are laid at the start of the path lengthways to denote the cyclepath and transversely for pedestrians. A central delineation strip then runs the full length of the shared pathway separating pedestrians from cycles.


The patterns on the tactile slabs are approximately 5mm high, whereas the ridges on the barface are approximately 3mm high.

Barface
sizes mm
nominal
grey buff no.
per
tonne
no.
per
pack
600 x 600 x 50
24 20

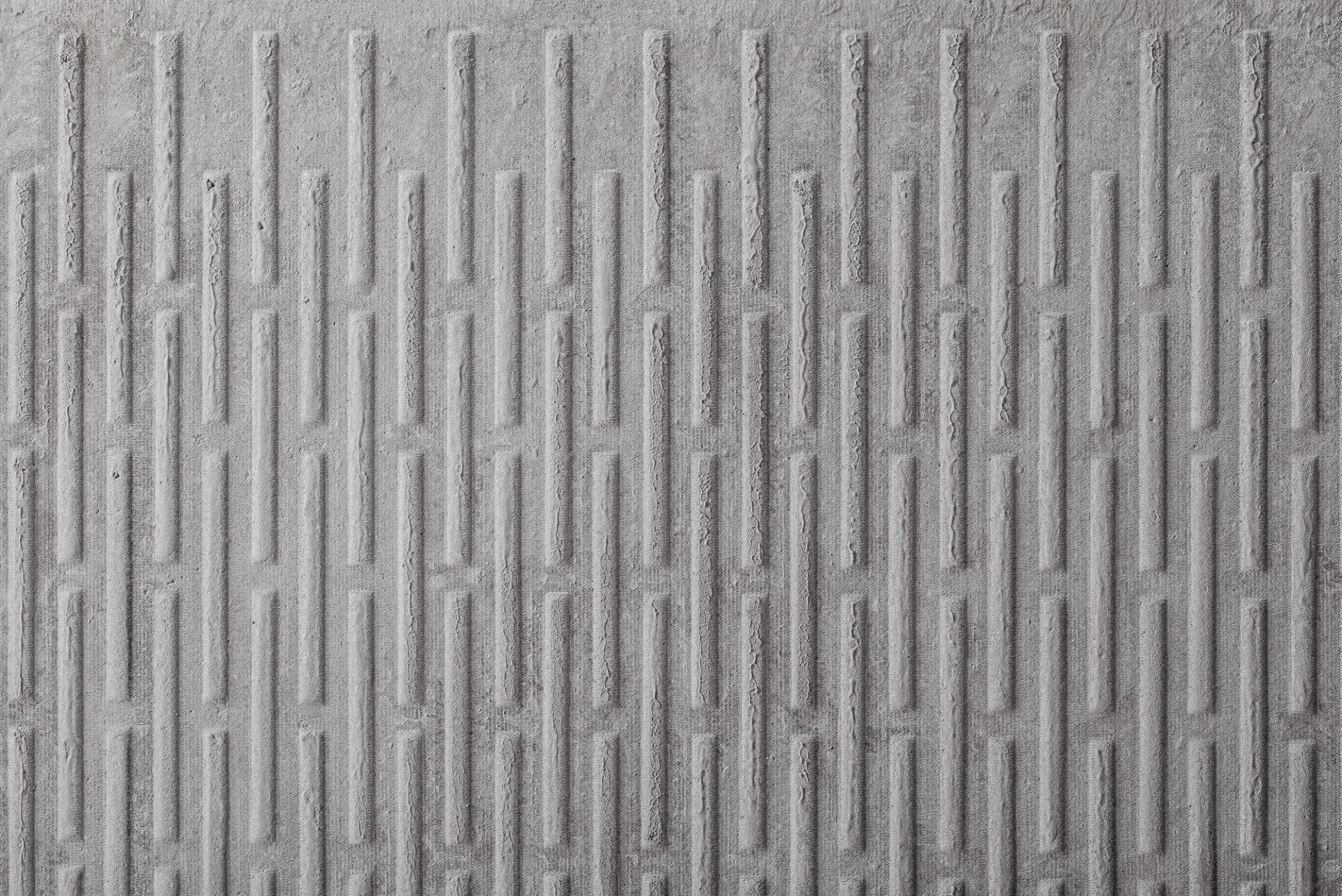

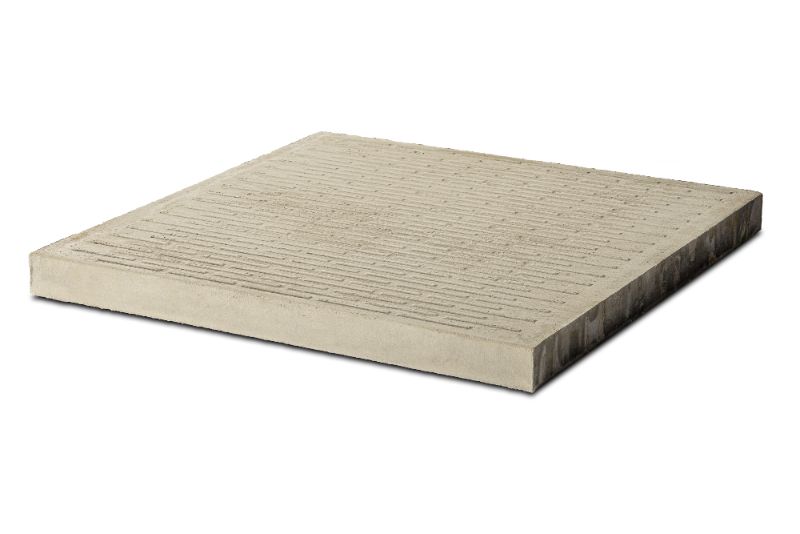

BARFACE PAVING

The ribbed pattern on this paving has been developed to improve grip on inclined surfaces, such as the ramps to footbridges or pedestrian subways, in damp conditions.


DOWNLOAD
PDF DATA SHEET
FOR THIS PRODUCT
PDF Data Sheet

All products are available ex works.
Prices on application.
Telephone our sales office for further information and quotations.
